Damping Loop Pipe Clamp-C2427
Material : Steel With PVC
Size : For Pipe 1/4", 3/8", 1/2", 5/8", 3/4",1" Dia.
Finish : Zinc Plated Steel With Black PVC
Product Name | Damping Loop Pipe Clamp | |||
Item No | C2427 | |||
Mateiral | Steel With PVC | |||
For Tubing | Length | Weight | Projection | Thickness. |

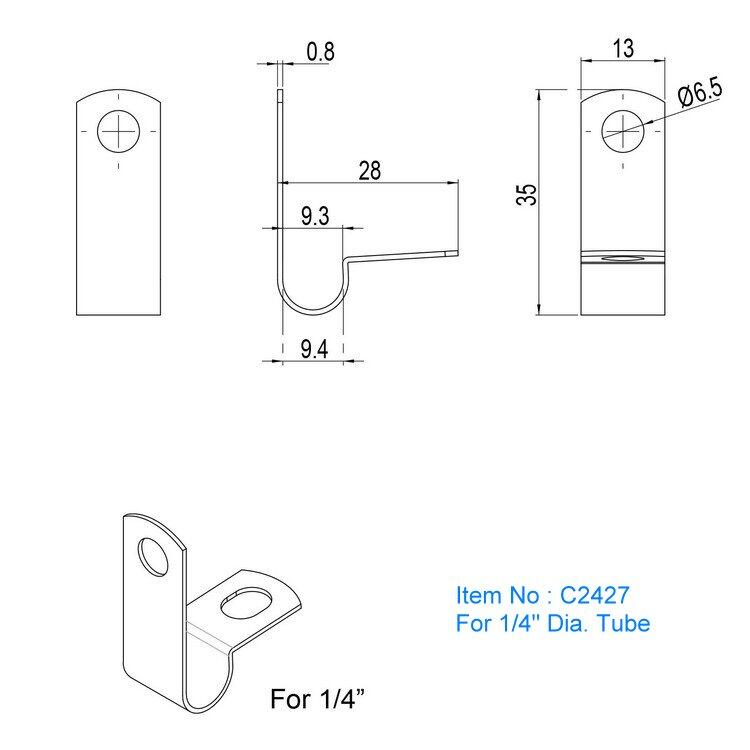

1/4”(6mm) Dia. | 35mm | 13mm | 28mm | 0.8mm |

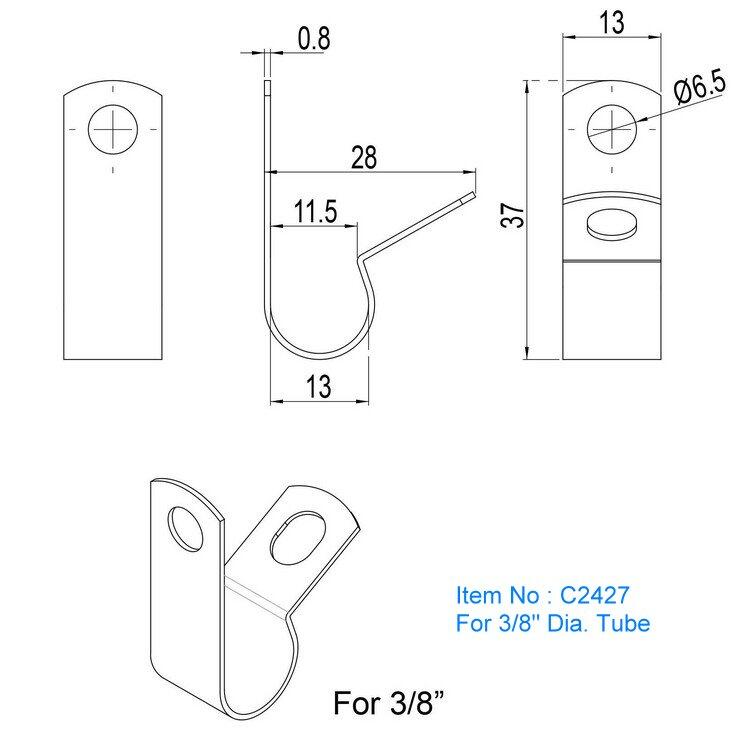

3/8”(10mm) Dia. | 37mm | 13mm | 28mm | 0.8mm |
1/2”(13mm) Dia. | 41mm | 13mm | 24.5mm | 0.8mm |

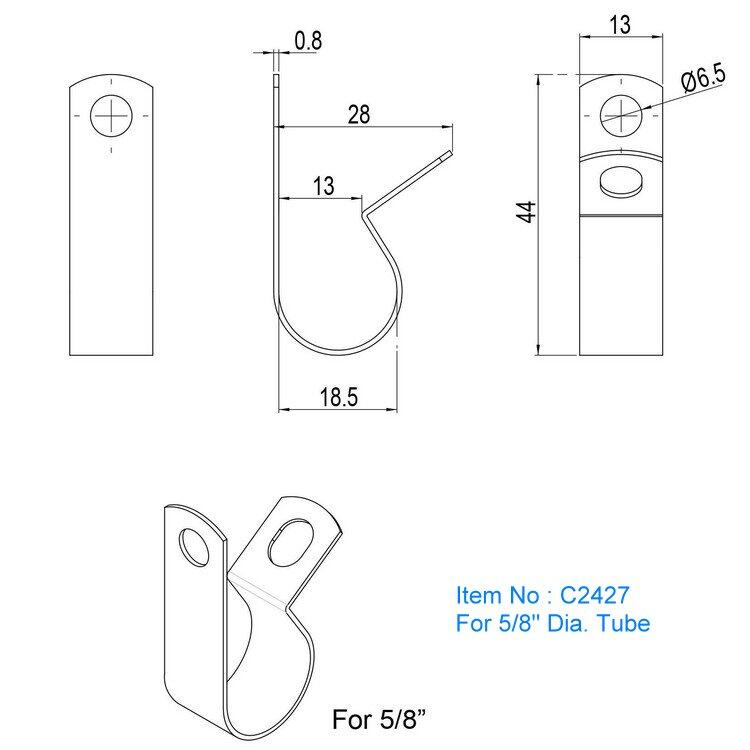

5/8”(16mm) Dia. | 44mm | 13mm | 28mm | 0.8mm |
3/4”(20mm) Dia. | 52.5mm | 13mm | 38mm | 0.8mm |
1”(25mm) Dia. | 62mm | 13mm | 36mm | 0.8mm |
